T24 Class- 2,400 lbs. lift capacity

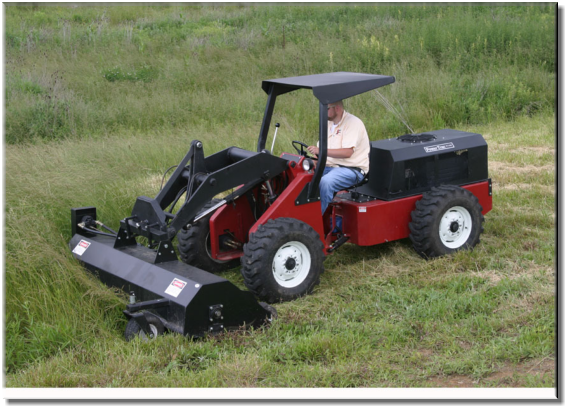

PT-1460 Compact Versatile Utility Tractor

General Features

- 2,400 lbs. lift capacity
- 60 Horsepower Diesel Engine
- 8' Lift Height
- 59" Wide
- 30 front mounted attachments
- Hydraulic Operated Quick Attach
- 4-Wheel Hydrostatic Drive
- Infinitely Variable Speeds
- Independent Wheel Motors
- Wet Disc Brakes
- Price Information
- T24 Class Video









- Articulated steering;  Plus or minus 45 Degrees

- Oscillates Plus or Minus 12 Degrees

- Machines are Ideal for Professional Landscapers, Rental Stores, Nurseries, Rock Scaping and Construction Sites.

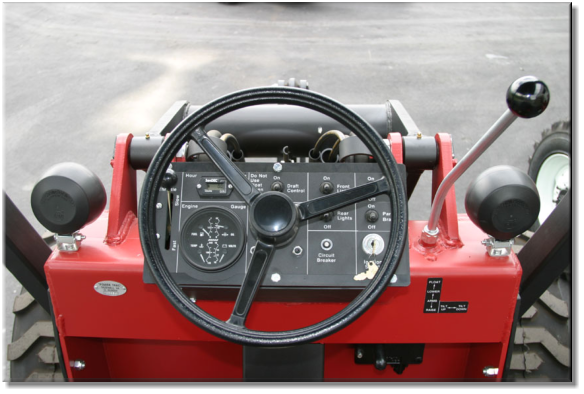

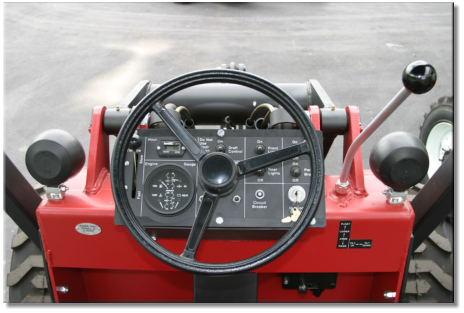

1460 Control Panel

- Steering Wheel

- Joystick- Controls arms' lift and tilt functions

- Throttle Control

- Brake

- Ignition

- PTO Switch

- Hourmeter

- Light Switch

- Gauge with engine temperature, oil pressure, fuel and voltage

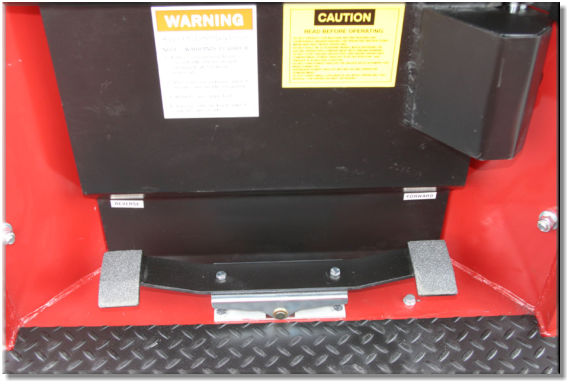

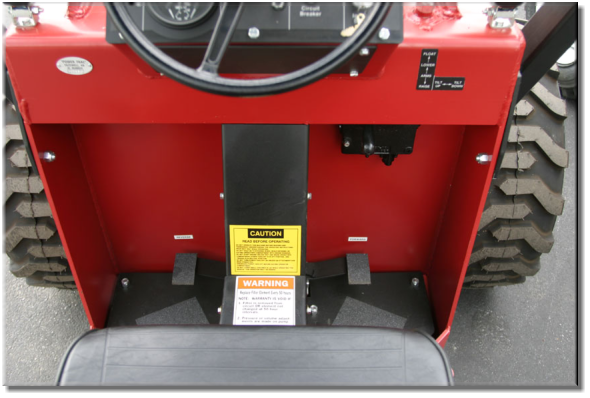

1460 Operator's Compartment

- Two-Toe Treadle- controls speed

- Press Right Pedal to go forward

- Press Left Pedal to go reverse

- Centering the treadle acts as a service brake

- Auxiliary PTO is above operator's right knee

- Park Brake applies automatically when engine is turned off or may be activated with a switch on the control panel





1460 Engine

The PT-1460 contains a 60 horsepower diesel engine.

1460 Tires

The tires on the 1460 are 12x16:50, 8-ply Loader Tires



PT-1460 Specifications

PT-1460 Tractor Specifications

Engine- 60 Horsepower Diesel
Weight- 5,620 lbs.
Length- 134"
Speed- Infinitely Variable 0-10 Mph

Tires- 12:00x16.5, 8-ply, Loader Tires; Tractor Width-  59"

Optional Tires- 31-15:50x15, 4-ply Turf Tires; Tractor Width-  65"

Frame- 3/8" to 1" Steel Plate
Lift Height- 8'
Lift Capacity- 2,400 lbs.
Ground Clearance- 12" Unobstructed
ROPS- Standard
Lights- 36 Watt, 2 front, 1 rear
Fuel Tank- 12 Gallon Capacity
Hydraulic Oil Tank- 20 Gallon 10W40
Width- 59"
PTO- 18 GPM @ 3,000 PSI
Inside Turning Radius- 5' 10"
Outside Turning Radius- 11'
Wheel Base- 6' 10"
Wet Disc Brakes- Spring Applied Hydraulic Release

2460

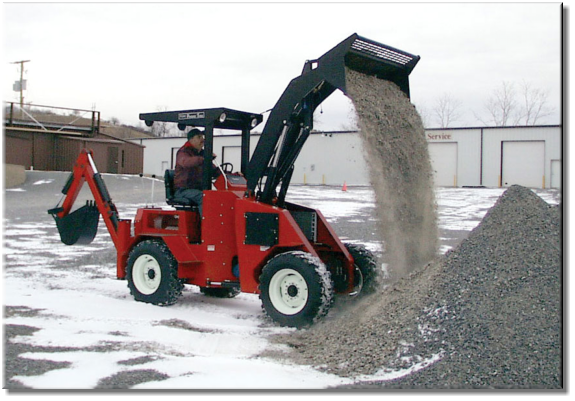

PT-2460 Compact Versatile Bucketloader

General Features



- 2,400 lbs. lift capacity

- 60 Horsepower Diesel Engine
- 10' Lift Height
- 59" Wide
- 30 front mounted attachments
- Hydraulic Operated Quick Attach
- Removable Backhoe Available
- 4-Wheel Hydrostatic Drive
- Infinitely Variable Speeds
- Independent Wheel Motors
- Wet Disc Brakes
- Price Information
- T24 Class Video



- Articulated steering;  Plus or minus 45 Degrees

- Oscillates Plus or Minus 12 Degrees

- Machines are Ideal for Professional Landscapers, Nurseries, Rental Stores, Construction Sites and Rock Scaping.

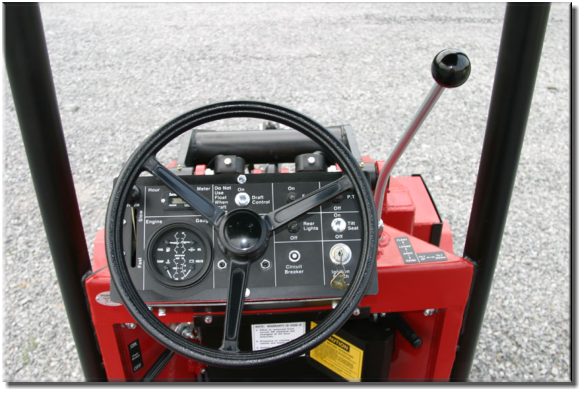

2460 Control Panel

- Steering Wheel

- Joystick- Controls arms' lift and tilt functions

- Throttle Control

- Brake

- Ignition

- PTO Switch

- Hourmeter

- Light Switch

- Gauge with engine temperature, oil pressure, fuel and voltage.

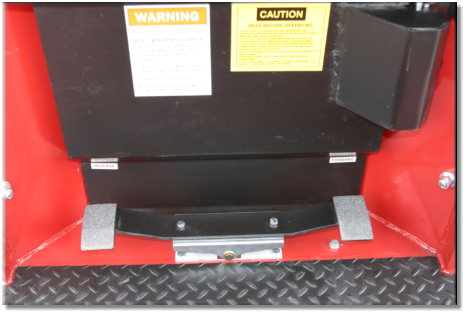

2460 Operator's Compartment

- Two-Toe Treadle- controls speed

- Press Right Pedal to go forward

- Press Left Pedal to go reverse

- Centering the treadle acts as a service brake

- Auxiliary PTO is above operator's right knee

- Park Brake applies automatically when engine is turned off or may be activated with a switch on the panel.



Control the backhoe with two joysticks:

- A right or left motion on the right joystick controls the bucket's up and down motion and an up or down motion controls the arm's in and out motion.

- A right or left motion on the left joystick controls the swing and an up or down motion contols the boom's up and down motion.

2460 Engine

The 2460 contains a 60 horsepower diesel engine.

Center Section

The durable, but flexible center section allows the PT-2460 to articulate and oscillate.

Wheel Motors

Each tire has it's own hydraulically-powered wheel motor.

Battery Compartment

The 2460 has a convenient battery compartment that is within easy reach of the operator.

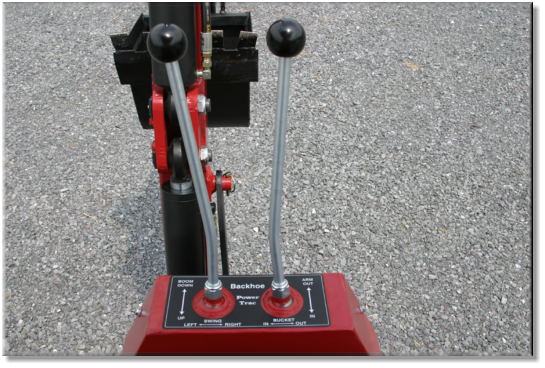

Backhoe Joysticks

Close-up shot of the 2460's Backhoe controls.

PT-2460 Specifications

PT-2460 Tractor Specifications

PT-2460 Backhoe Specifications

Engine- 60 Horsepower Diesel Reach- 12' 10"
Weight- 5,980 lbs. Breakout Force (Bucket Curl)- 4,000 lbs.
Speed- 0-8 mph Infinitely Variable Digging Depth- 9'

Tires- 12:00x16.5; 8-ply Loader;                             Tractor Width- 59"

Bucket Widths- 12" & 18"

Optional Tires- 31-15:50x15; 4-ply Turf;                  Tractor Width- 66"

Swing- 60˚ both directions, 120 total
Frame- 3/8" to 3/4" Steel Plate Outrigger- Vertical Slide
PTO- 18 GPM @ 3,000 PSI
Fuel Tank- 15 Gallon
Hydraulic Oil Tank- 12 Gallon 5W30
Lift Capacity- 2,400 lbs.
Lift Height- 10'
Inside Turning Radius- 5' 10"
Outside Turning Radius- 11'
Wheel Base- 6' 10"
Bucket Breakout Force (Bucket Curl)- 4,000 lbs.
ROPS- Standard
Tractor Width- 59"
Ground Clearance-  12" unobstructed
Wet Disc Brakes- Spring Applied Hydraulic Release

tr24

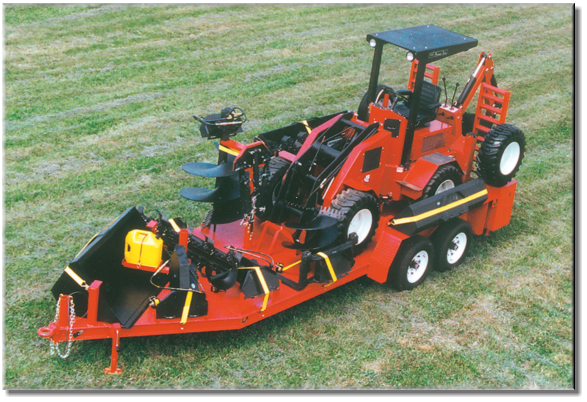

TR24 Trailer Package

Power Trac TR24 Trailer Package

- Choose from a standard package with trailer, T24 machine,

17 cu. bucket, trencher, planter drill head, 9", 24", 36" augers, stump cutter, lift boom, forks.

 OR build your own custom package.

- Up to 15 Attachments

- Choose between the PT-1460 and PT-2460

- 14,000 lbs. Gross Weight

- Double Axle Trailer

- Electric Brakes on both axles

- Hitch options:  Pendle or 2 5/16 " ball.





*CALL FOR TRAILER PRICES

- 18 ft. custom trailer with spare tires and toolboxes





Below is a picture gallery of the features on the TR24 trailer package.  Click on the picture to see a larger photo.

Tool Box

All Power Trac trailers come standard with a toolbox. In the toolbox, Power Trac provides a socket set and extra ratchet straps.

From Ground Level

Ground level view of the 16 foot trailer. Power Trac trailers feature a front jack which allows the trailer to become a working platform.

Front of Trailer

Closer view of the attachments on the front end of the trailer.

Pendle Hitch

Pendle Hitches are available for Power Trac trailers. 2-5/16" ball hitches are also available.

Working Platform

A truck does NOT have to be connected to the trailer when the tractor moves on and off the trailer. This trailer can also be used as a working platform.

Ratchet Straps

Nylon ratchet straps firmly secure the attachments to the trailer.

Side View

Another view of the Trailer, Tractor, Attachments and Accessories.

Split Tailgate

The light weight, but durable, split gate makes it easy for the operator to get the machine on and off the trailer.
