T18 Class
1,800 lbs. Lift Capacity

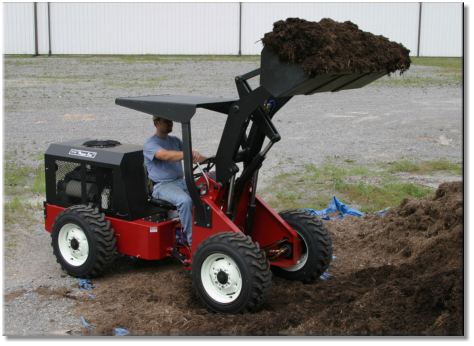

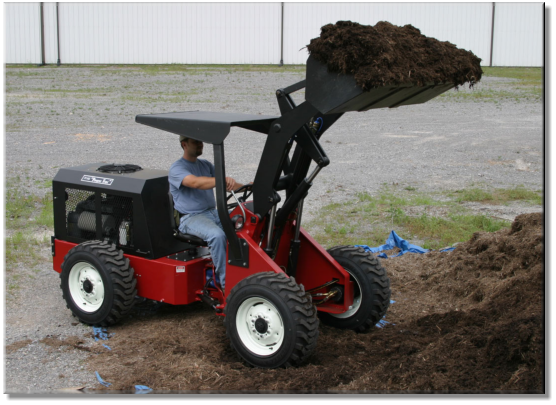

PT-1445
General Features
•
1,800 lbs. lift capacity
•
45HP diesel engine
•
7’ lift height
•
56” wide
•
30 attachments offered
•
Hydraulic Operated Quick Attach
•
4-wheel Hydrostatic Drive
•
Infinitely Variable Speeds
•
Independent wheel motors
•
Price Information
•
Articulated steering: +/- 45
degrees
•
Oscillates +/- 12 degrees
•
PT-1445 is ideal for professional
landscapers, rental stores,
nurseries, rock scaping and
construction sites

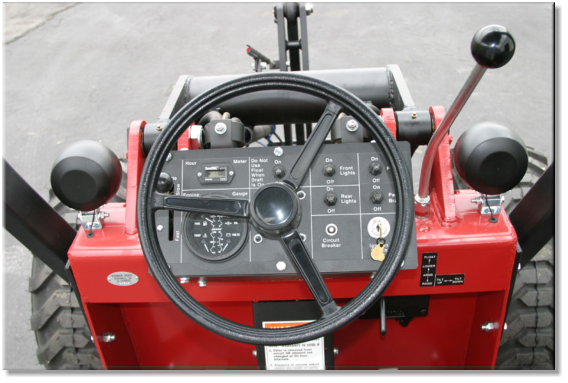

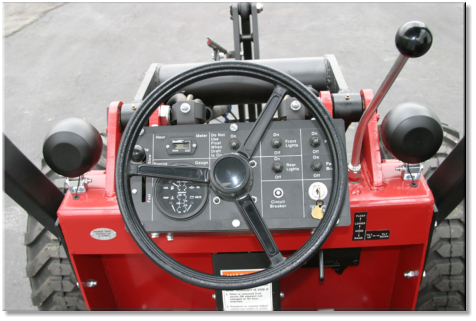

1445 Control Panel
•
Steering Wheel
•
Joystick: controls arms’ lift
and tilt functions
•
Throttle and Choke control
•
Draft Control
•
Ignition
•
PTO switch
•
Hourmeter
•
Light switch
•
Gauge with engine
temperature, oil pressure,
fuel and voltage

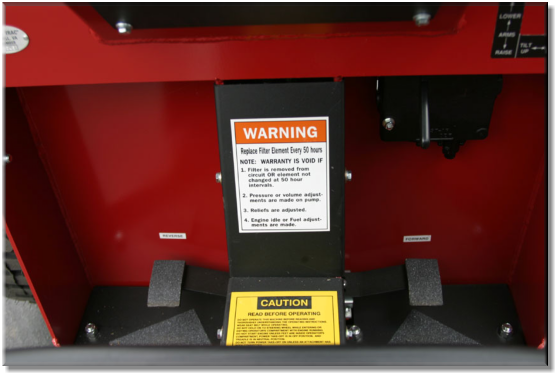

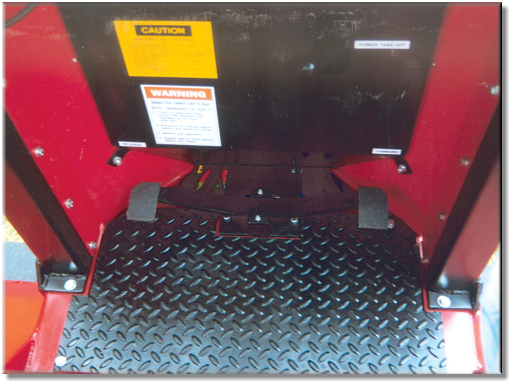

1445 Operator’s Compartment
•
Two-toe treadle controls speed
•
Press right pedal to go forward
•
Press left pedal to go reverse
•
Centering the pedal acts as a
service brake
•
Auxiliary PTO is above operator’s
right knee
•
Park Brake is above operator’s
left knee
PT-1445 Specifications
•
Weight: 3,920 lbs.
•
Length: 121”
•
Speed: 0-10 mph variable
•
Ground Clearance: 10”
unobstructed
•
PTO: 15GPM @ 3,000 PSI
•
Frame: 1/4” to 3/4” steel plate
•
Fuel Tank: 12 gallon capacity
•
Hydraulic Oil Tank: 20 gallon
10W40
•
Lift Capacity: 1,800 lbs
•
Lift Height: 7’
•
Outside Turning Radius: 9’6”
•
Inside Turning Radius: 4’5”
•
Wheel Base: 74”
•
ROPS: standard
•
Lights: 36 watt halogen, 2 front, 1
rear
•
Tires: 10:00x16.5 Loader 6-ply;
Tractor width: 56”
•
Optional Tires: 31-15:50x15 turf
4-ply; Tractor width: 64”
PT-2445
•
1,800 lbs. lift capacity
•
45HP diesel engine
•
9’ lift height
•
56” wide
•
30 attachments offered
•
Hydraulic Operated Quick Attach
•
4-wheel Hydrostatic Drive
•
Infinitely Variable Speeds
•
Independent wheel motors
•
Price Information
•
Articulated steering: +/- 45
degrees
•
Oscillates +/- 12 degrees
•
PT-2445 is ideal for professional
landscapers, rental stores,
rock scaping and construction sites

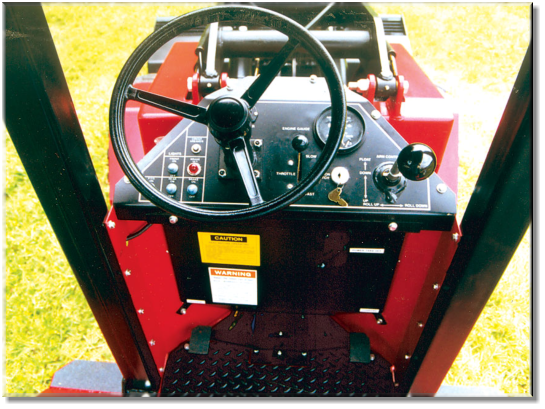

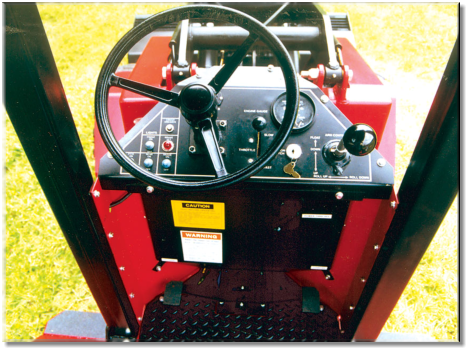

2445 Control Panel
•
Steering Wheel
•
Joystick: controls arms’ lift
and tilt functions
•
Throttle and Choke control
•
Draft Control
•
Ignition
•
PTO switch
•
Hourmeter
•
Light switch
•
Gauge with engine
temperature, oil pressure,
fuel and voltage
2445 Operator’s Compartment
•
Two-toe treadle controls speed
•
Press right pedal to go forward
•
Press left pedal to go reverse
•
Centering the pedal acts as a
service brake
•
Auxiliary PTO is above operator’s
•
right knee
•
Park Brake is above operator’s
left knee
•

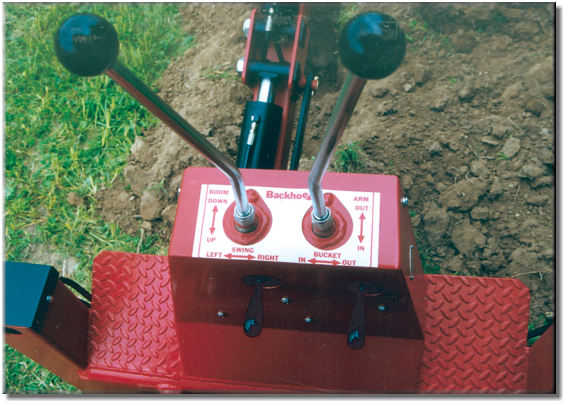

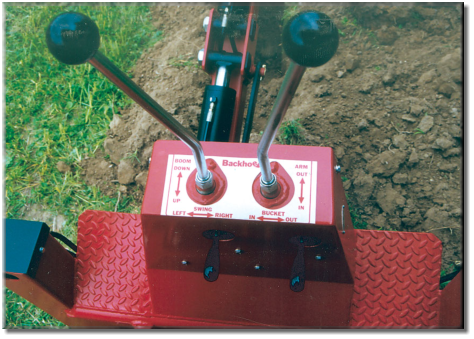

Control backhoe with 2
joysticks
•
A right or left motion on the
right joystick controls the
bucket’s up or down motion
and an up or down motion
controls the arm’s in and out
motion
•
A right or left motion on the left
joystick controls the swing and
an up or down motion controls
the boom’s up and down
motion
2445 Tractor Specifications
2445 Backhoe Specifications
•
Engine: 45HP Diesel
•
Weight: 4,260 lbs.
•
Height: 88” (to top of canopy)
•
Speed: 0-8 mph
•
Tires: 10:00x16.5 Loader, 6-ply;
Tractor width- 56”
•
Optional Tires: 31-15:50x15 Turf, 4-ply
Tractor width- 63”
•
Ground Clearance: 9”
•
Frame: 1/4” to 3/4” Steel Plate
•
PTO: 12GPM @ 3,000 PSI
•
Fuel Tank: 15 gallon
•
Hydraulic Oil Tank: 15 Gallon 10W40
•
Lift Capacity: 1,800 lbs.
•
Lift Height: 9’
•
Inside Turning Radius: 4’5”
•
Outside Turning Radius: 9’6”
•
Wheel Base: 73”
•
ROPS: Standard
•
Reach: 10’
•
Breakout Force (bucket curl):
3,500 lbs.
•
Digging Depth: 8’
•
Bucket Widths: 12” & 18”
•
Swing: 60° both directions
•
Outrigger: vertical slide

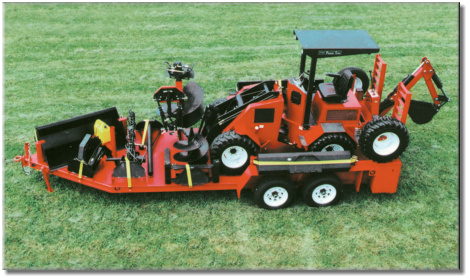

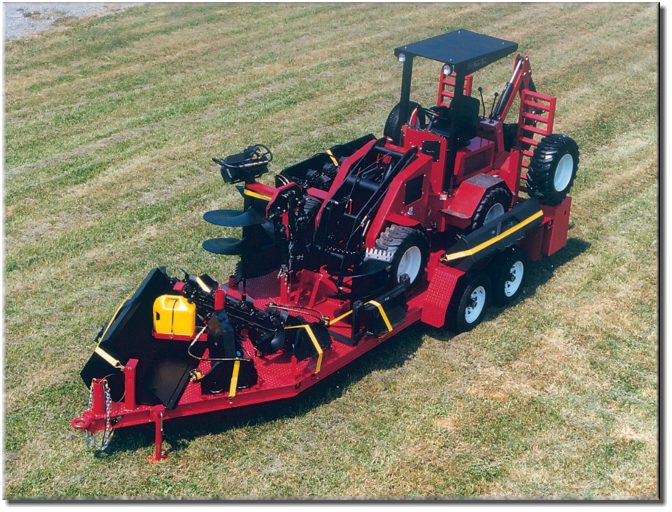

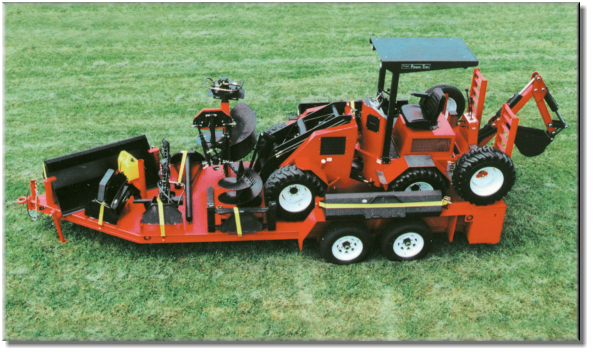

TR18 Trailer Package
16 ft. custom trailer with spare tires, toolboxes and PT2445 tractor
•
Choose from a standard
package with trailer, PT1445 or
PT2445 tractor, 8cu. bucket,
18cu. bucket, lift boom, forks,
trencher, planter drill head, 9”,
24” and 36” augers, stump
cutter, tiller, lift boom, forks
•
OR build your own custom
package:
o
up to 15 attachments
o
choose between PT-1445
and PT-2445
o
10,000 lbs. gross weight
o
Double Axle Trailer
o
Electric Brakes on both
axles
o
Hitch options: Pendle or 2-
5/16” ball
•
*Call 1-800 THE YARD for
Trailer Prices
TR18 Trailer Package features
