Attachments for other equipment

This unique group of Power Trac Attachments can be used on any brand of tractor or loader. Simply connect your own attachment plate and hydraulic hoses. Click on pictures for a larger view.

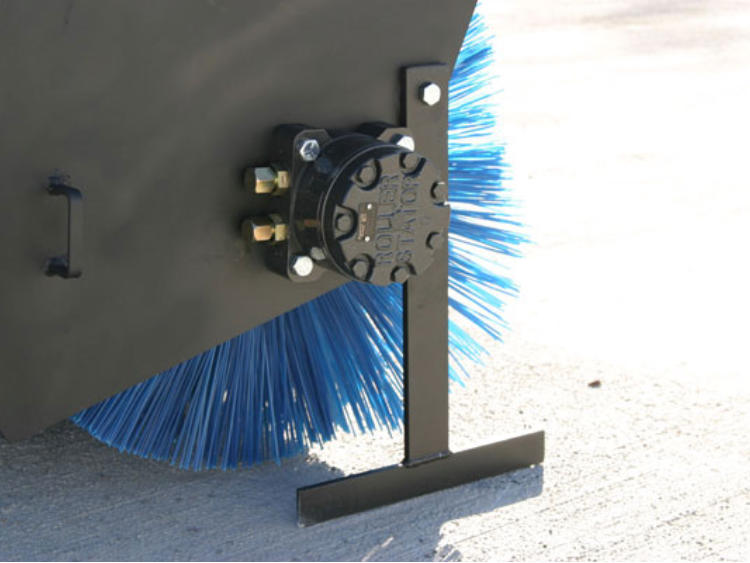

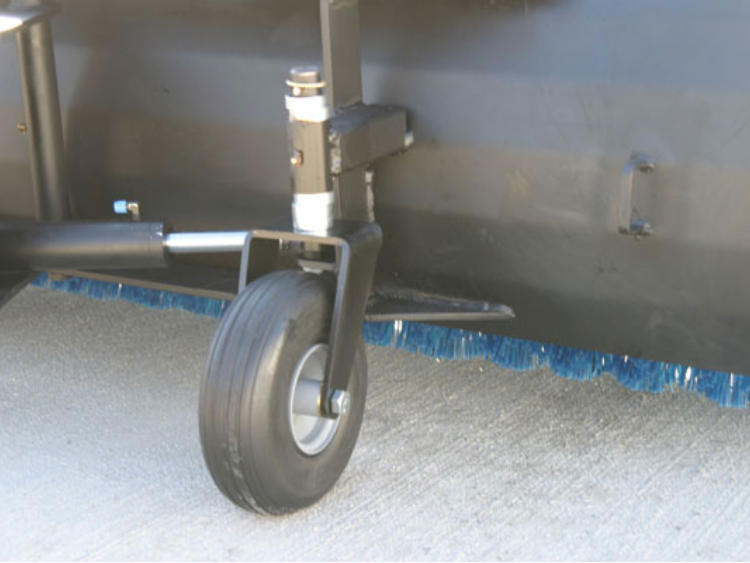

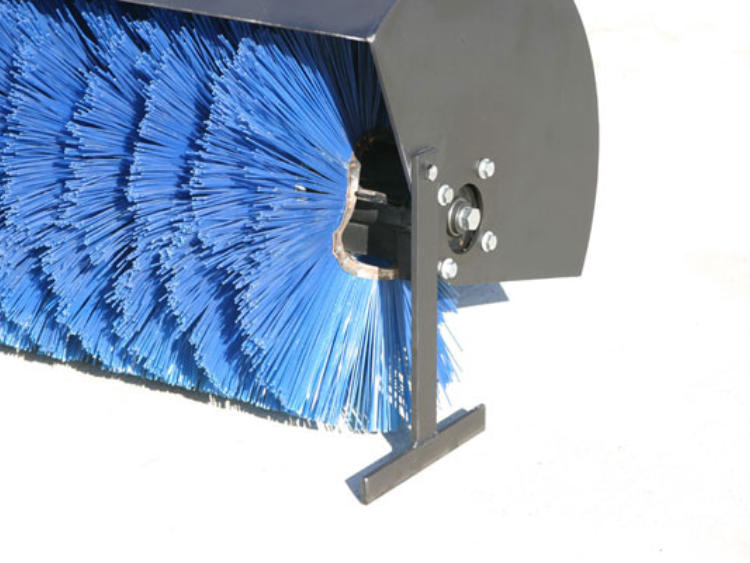

Sweeper

• Available in 4 sizes: 48” 60” 72” & 84” • Hydraulic Angle Control: 30° right or left • Durable Nylon Bristles: 24” diameter • Support foot for storage • Casters included: adjust spacers as bristles wear

48” Sweeper Specifications

60” Sweeper Specifications

• 7” x 7” Bolt mount for Quick Attach • 6 to 12 GPM required • 1,500 to 2,500 PSI required • Part #: Q3228

• 8” x 8” bolt mount for Quick Attach • 10 to 15 GPM required • 1,500 to 2,500 PSI required • Part #: Q3178

72” Sweeper Specifications

84” Sweeper Specifications

• 8” x 8” Bolt mount for Quick Attach • 12 to 18 GPM required • 1,500 to 2,500 PSI required • Part #: Q3335

• 8” x 8” Bolt mount for Quick Attach • 12 to 18 GPM required • 1,500 to 2,500 PSI required • Part #: Q3303

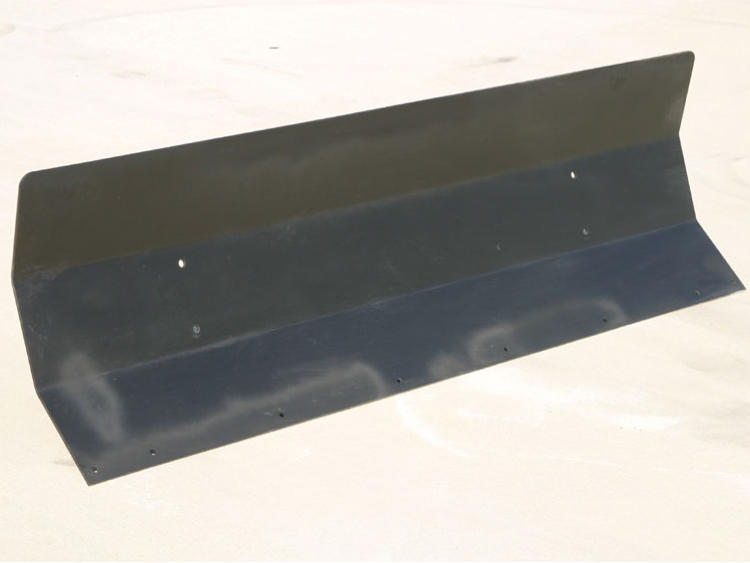

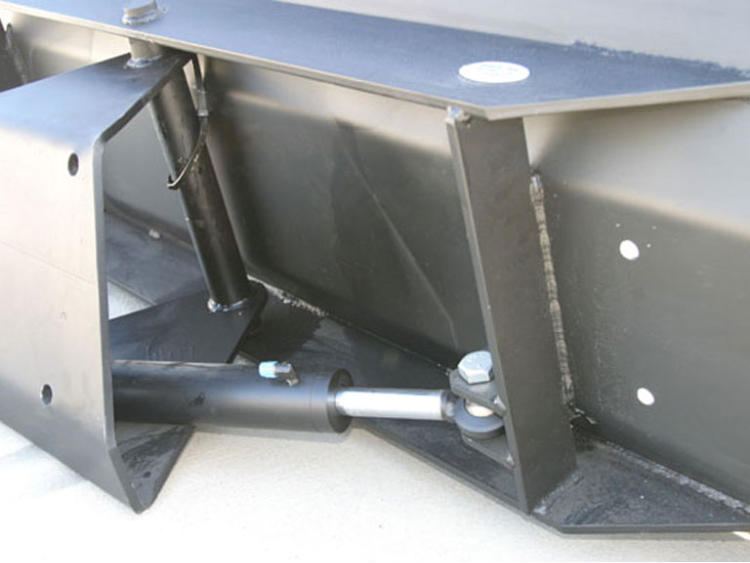

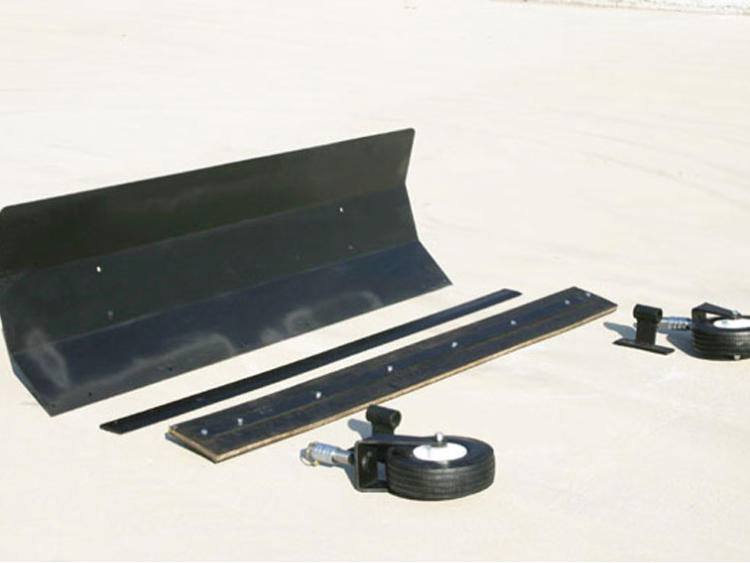

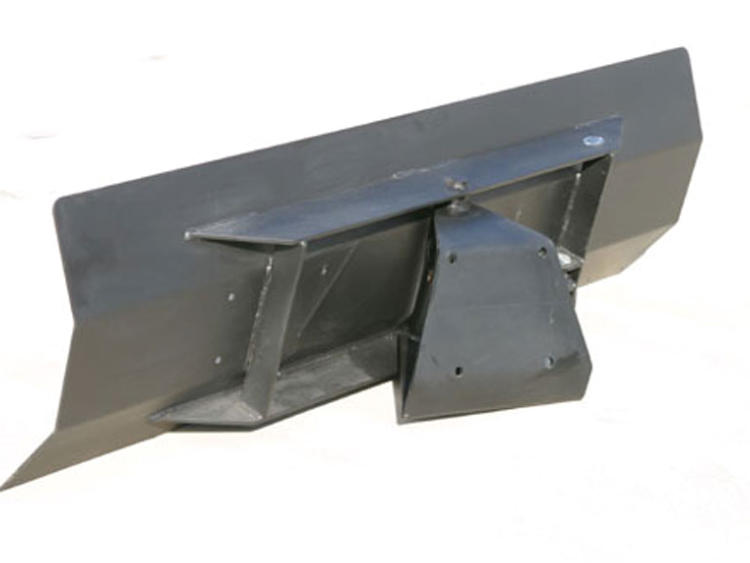

Snow Blade

• Available in 4 sizes: 60” 72” 84” & 96” • Hydraulic Angle Control: 30° right or left • Caster Wheel Kit available: $125 • Rubber Lip Kit available for snow • Steel Cutter Bar Kit available for grading

60” Blade Specifications

72” Blade Specifications

• 7” x 7” Bolt mount for Quick Attach • Caster Wheel Kit: K164 • Rubber Lip Kit: K138 • Steel Cutter Bar Kit: K147 • Blade Part #: Q3233

• 8” x 8” Bolt mount for Quick Attach • Caster Wheel Kit: K164 • Rubber Lip Kit: K139 • Steel Cutter Bar Kit: K148 • Blade Part #: Q3187

84” Blade Specifications

96” Blade Specifications

• 8” x 8” Bolt mount for Quick Attach • Caster Wheel Kit: K164 • Rubber Lip Kit: K140 • Steel Cutter Bar Kit: K149 • Blade Part #: Q3188

• 8” x 8” Bolt mount for Quick Attach • Caster Wheel Kit: K164 • Rubber Lip Kit: K141 • Steel Cutter Bar Kit: K150 • Blade Part #: Q3344

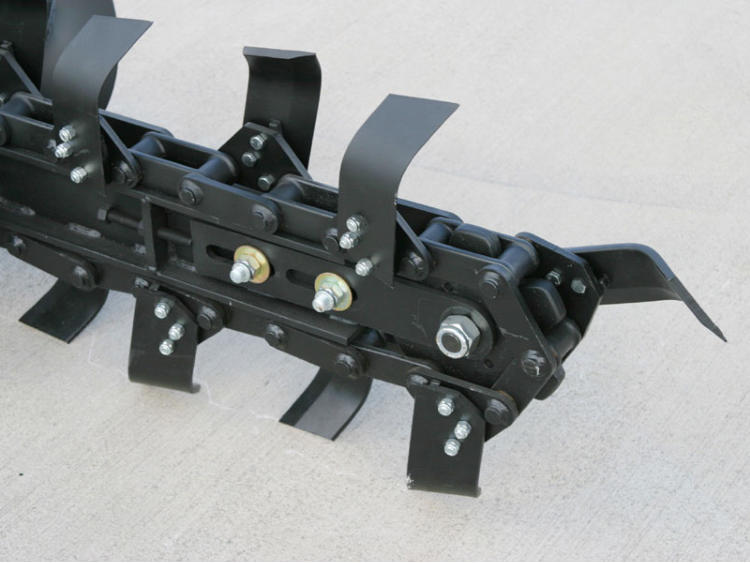

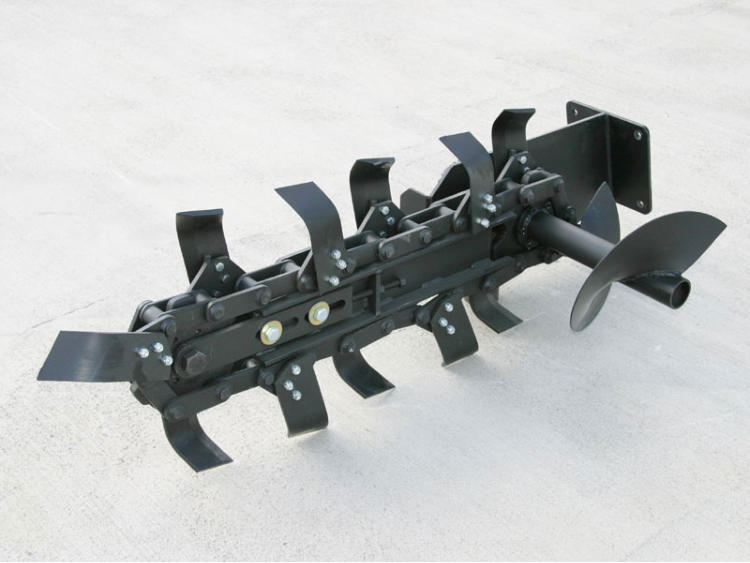

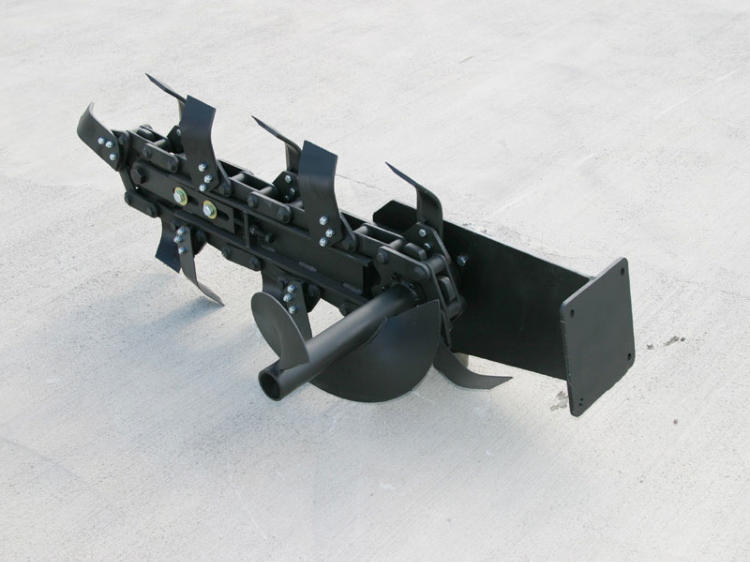

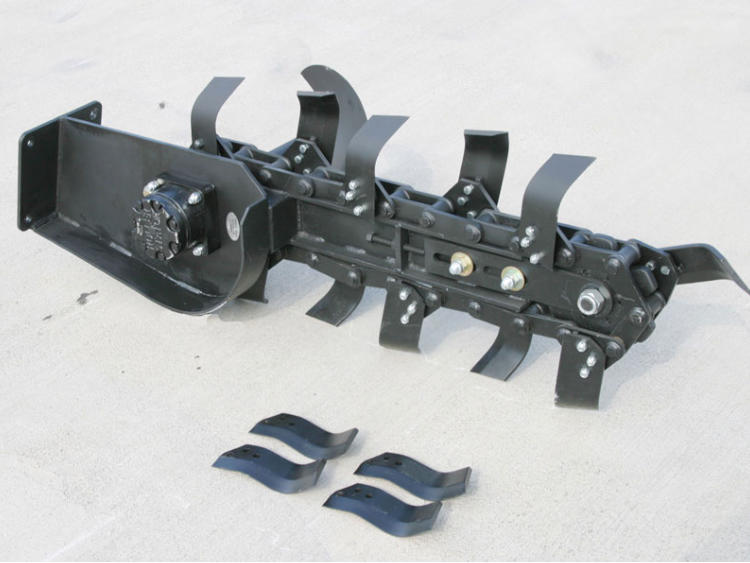

Trencher

• Available in 2 sizes: 3’ & 4’ • Digs 4” wide • Augers pushes dirt 12” from ditch • Optional 6” wide Digging Kit available • Bolt-on Teeth

3’ Trencher Specifications

4’ Trencher Specifications

• 7” x 7” Bolt mount for Quick Attach • 6 to 12 GPM required • 1,500 to 2,500 PSI • 3’ digging depth • 6” wide kit: K128 • Trencher Part #: Q3221

• 8” x 8” Bolt mount for Quick Attach • 10 to 18 GPM required • 1,500 to 2,500 PSI • 4’ digging depth • 6” wide kit: K128 • Trencher Part #: Q3164

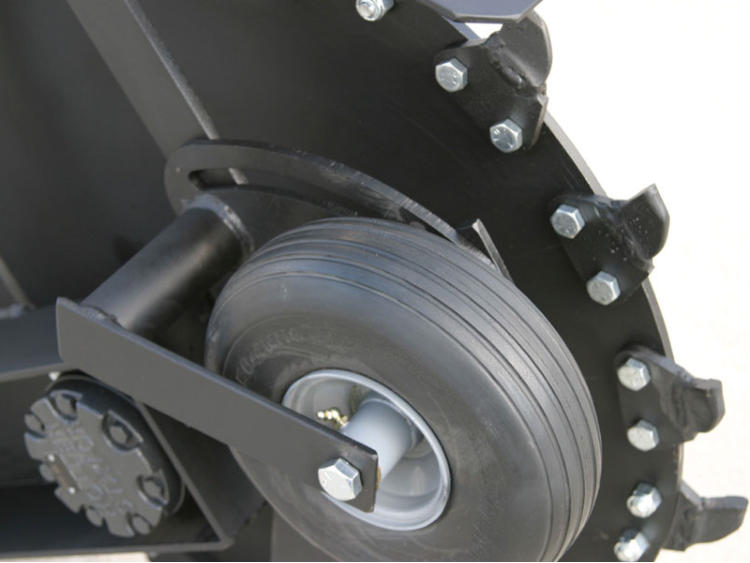

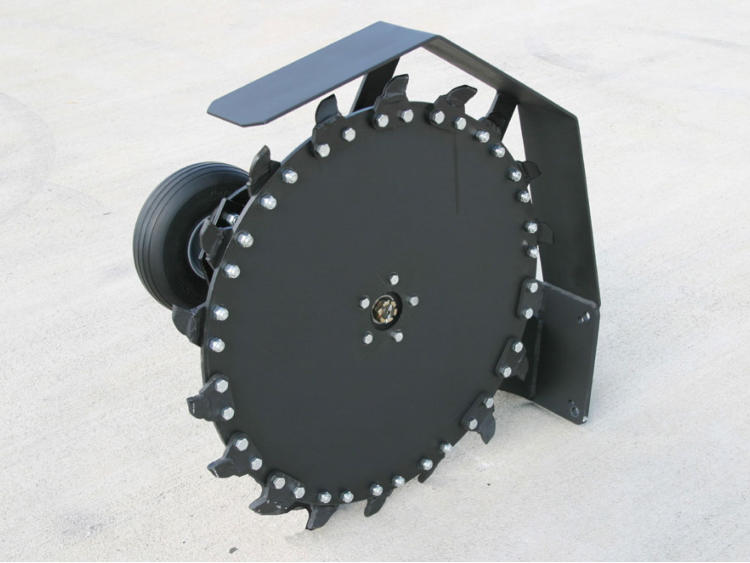

Wheel Trencher

• Available in 2 sizes • Bolt-on Carbide Tip Teeth • Adjustable Caster included for depth control • Dig 2-½” wide up to 12” deep

• 7” x 7” Bolt mount for Quick Attach • 6 to 12 GPM required • 1,500 to 2,500 PSI • Part #: Q3315

Wheel Trencher Specifications Small

Wheel Trencher Specifications Large

• 8” x 8” Bolt mount for Quick Attach • 10 to 18 GPM required • 1,500 to 3,000 PSI • Part #: Q3168

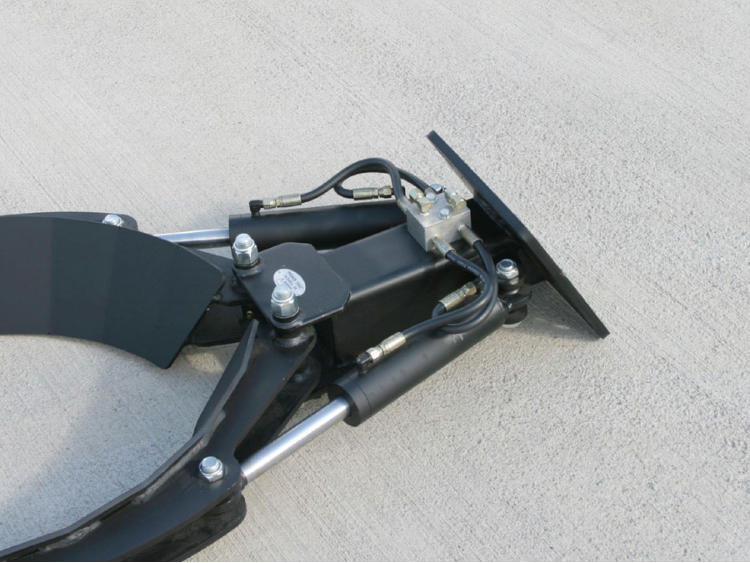

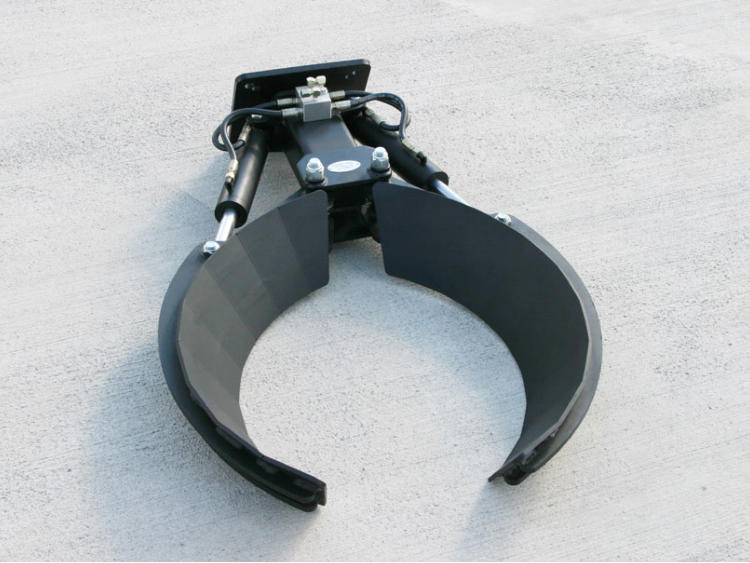

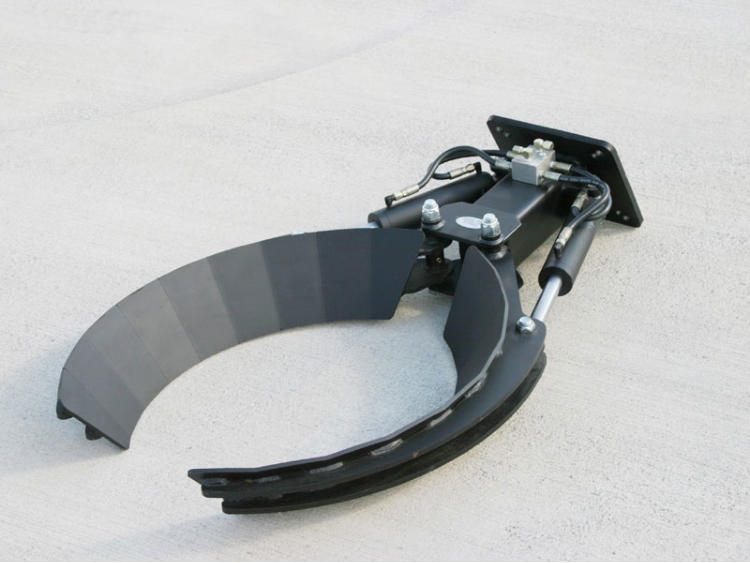

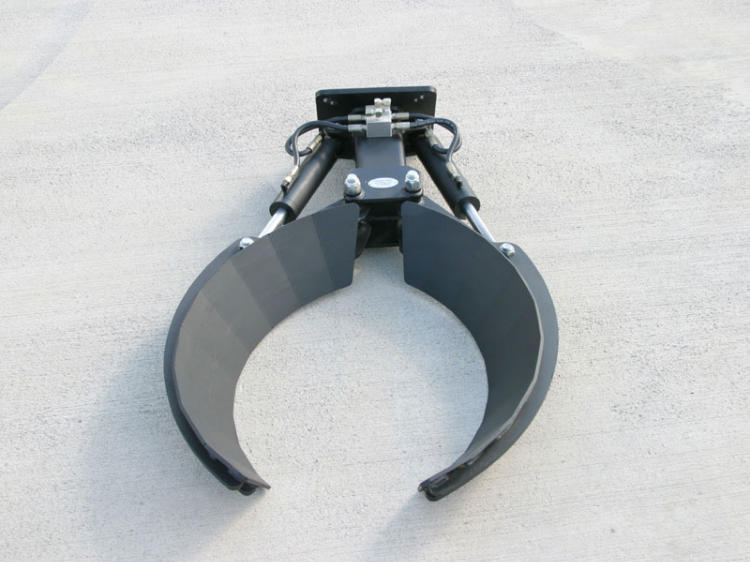

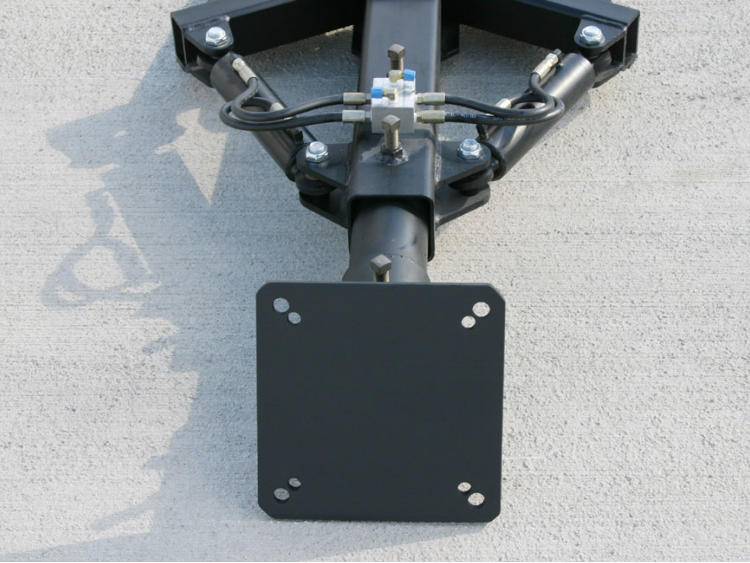

Tree Hugger

Available in 2 sizes

• 36” Root Ball • 7” x 7” Bolt mount for Quick Attach • Recommend 600 to 2,400 PSI • Pound Lift Capacity Machine • Part #: Q3300

Tree Hugger Specifications Small

Tree Hugger Specifications Large

• 60” Root Ball • 8” x 8” Bolt mount for Quick Attach • Recommend 1,200 to 2,400 PSI • Pound Lift Capacity Machine • Part #: Q3397

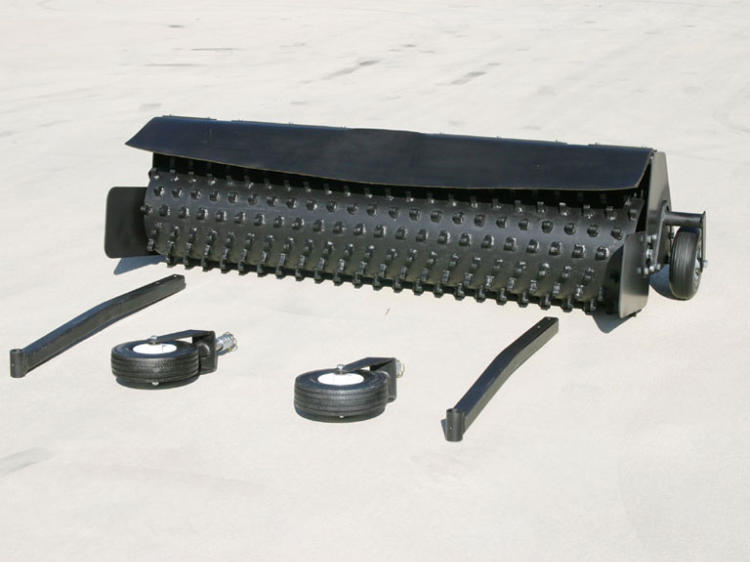

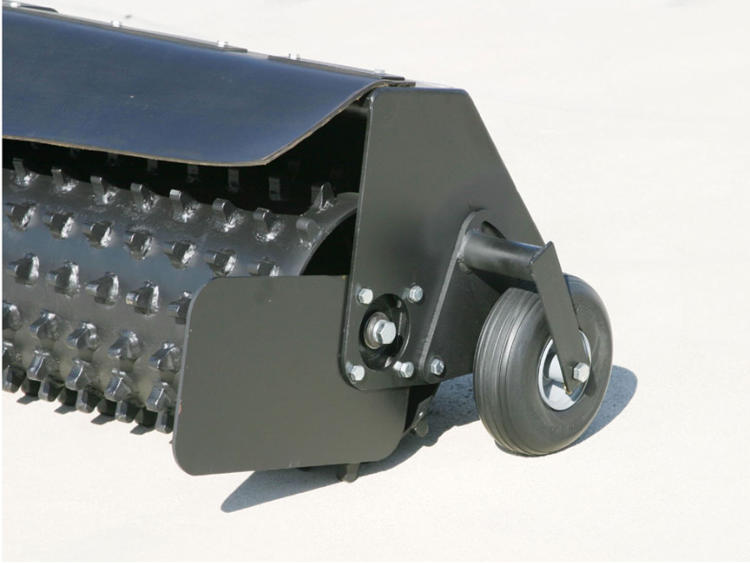

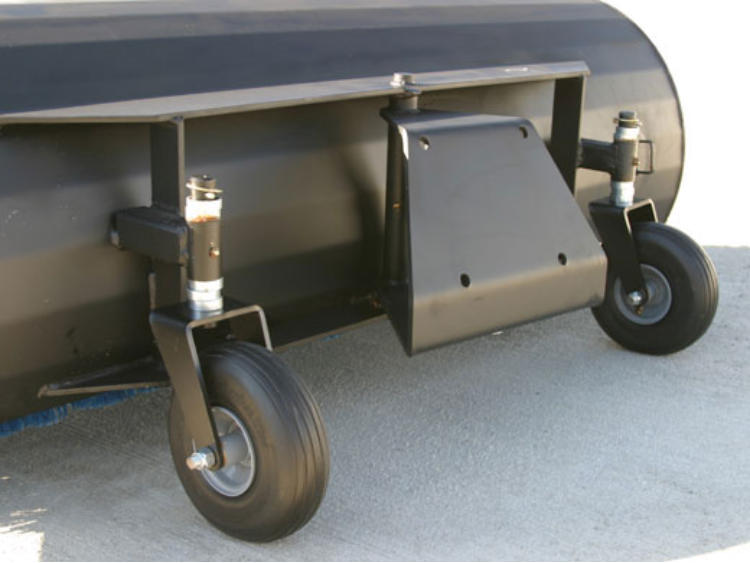

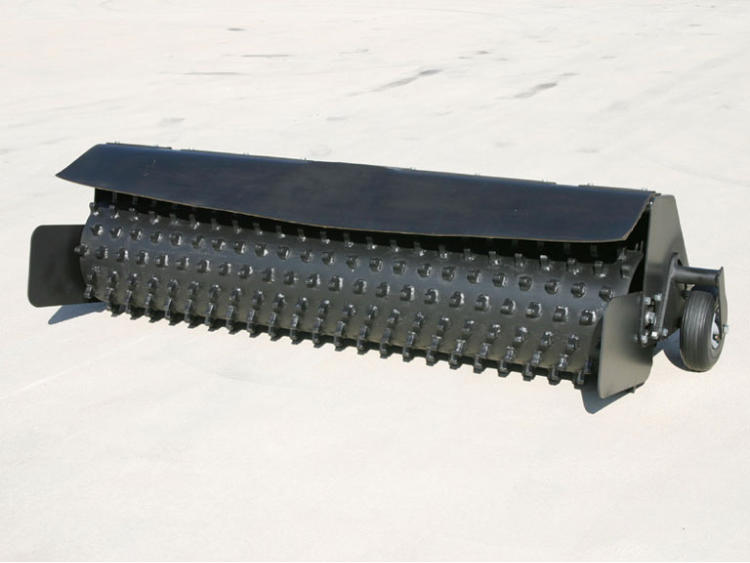

Power Rake

• Available in 3 sizes: 48” 60” 72” • Adjustable Casters included • Adjustable Rear Wheels • High Carbon Abrasion Resistant 1-¼” high knobs

48” Rake Specifications

60” Rake Specifications

• 14” Diameter Drum • Direct Drive • Adjustable Tooth Height • 6 to 12 GPM required • 1,500 to 2,500 PSI • 7x7 • Part #: Q3308

• 14” Diameter Drum • Direct Drive • Adjustable Tooth Height • 10 to 15 GPM required • 1,500 to 3,000 PSI • 8x8 • Part #: Q3309

72” Rake Specifications

• 14” Diameter Drum • Direct Drive • Adjustable Tooth Height • 12 to 18 GPM required • 1,500 to 3,000 PSI • 8x8 • Part #: Q3338

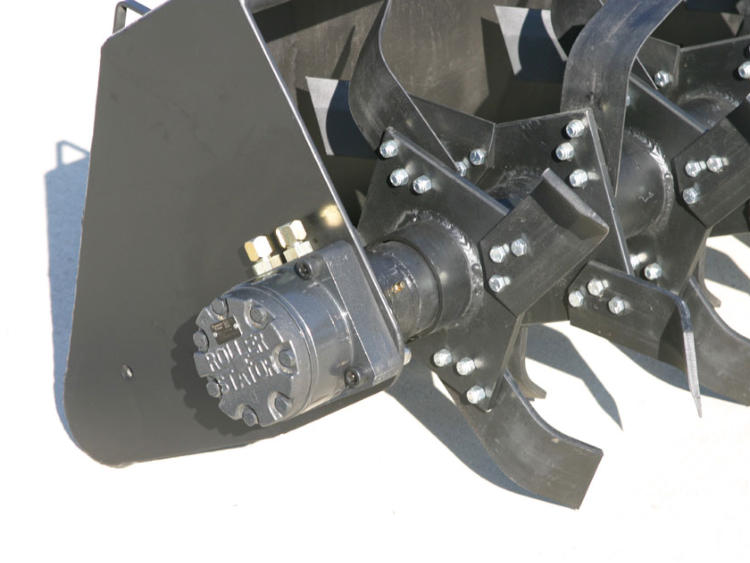

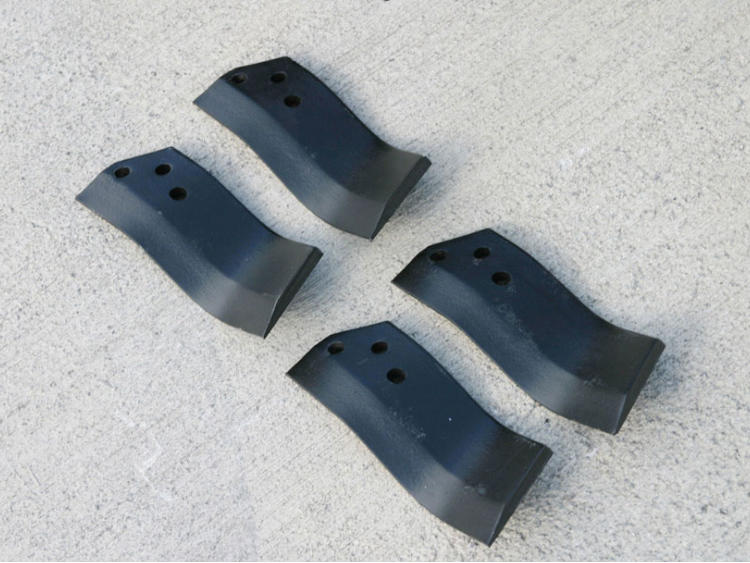

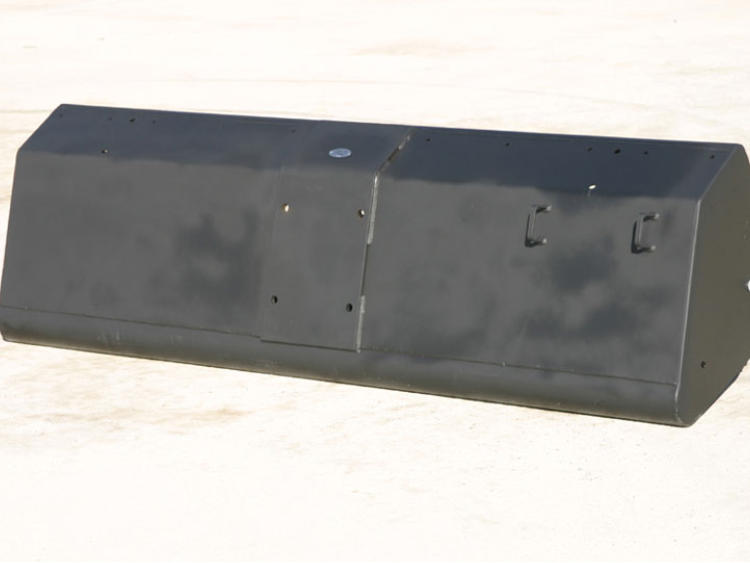

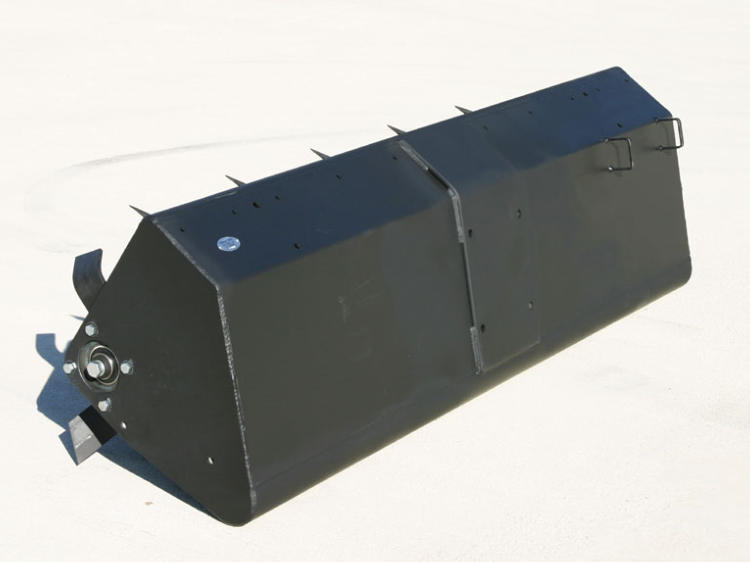

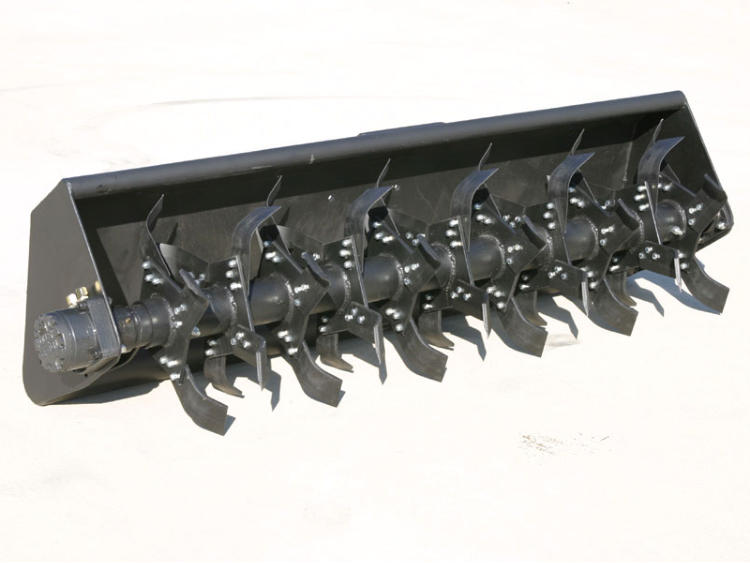

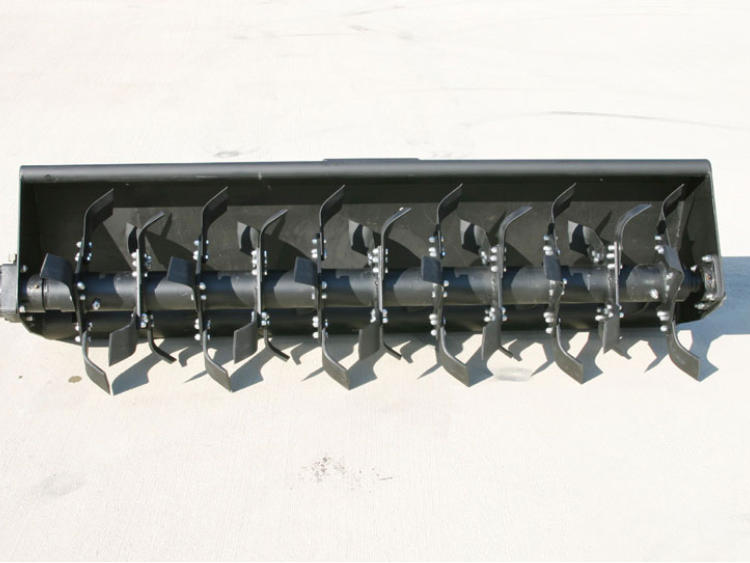

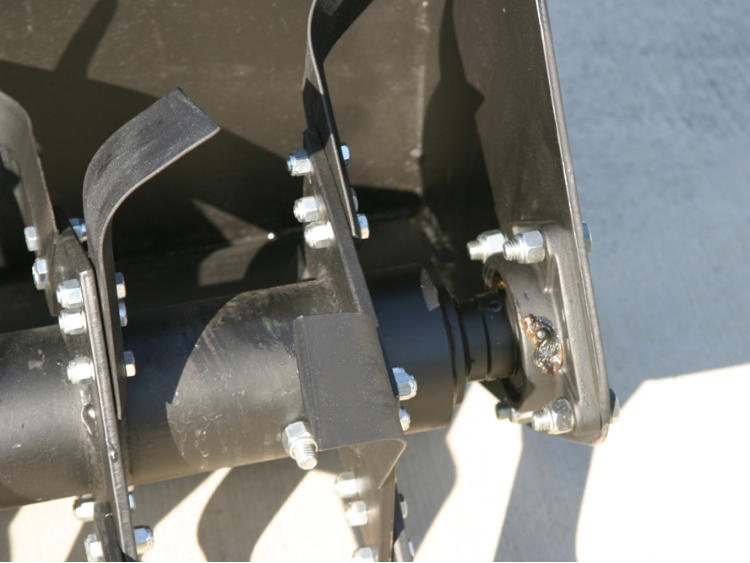

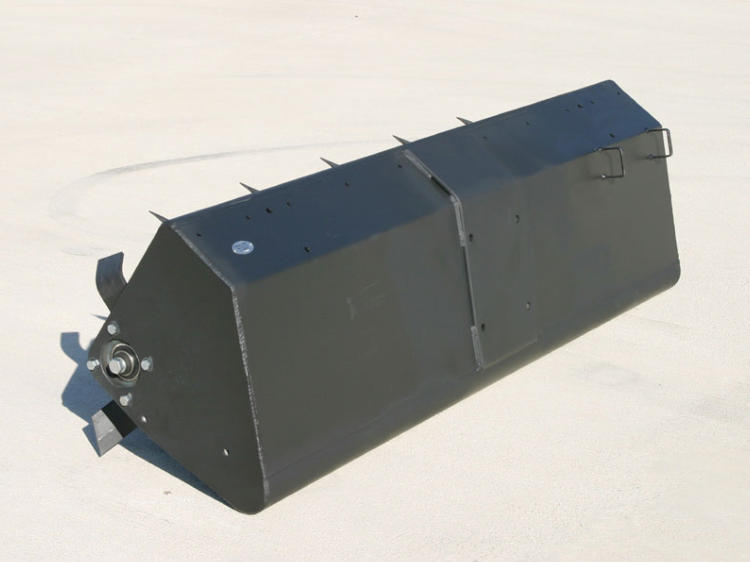

Tiller

• Available in 3 sizes: 48” 60” 72” • Adjustable Casters • Digs up to 8” deep • Tilt to control depth

48” Tiller Specifications

60” Tiller Specifications

72” Rake Specifications

• 7” x 7” Bolt mount for Quick Attach • 6 to 12 GPM required • 1,500 to 2,500 PSI • Part #: 3218

• 8” x 8” Bolt mount for Quick Attach • 10 to 15 GPM required • 1,500 to 2,500 PSI • Part #: 3183

• 8” x 8” Bolt mount for Quick Attach • 10 to 18 GPM required • 1,500 to 2,500 PSI • Part #: 3333

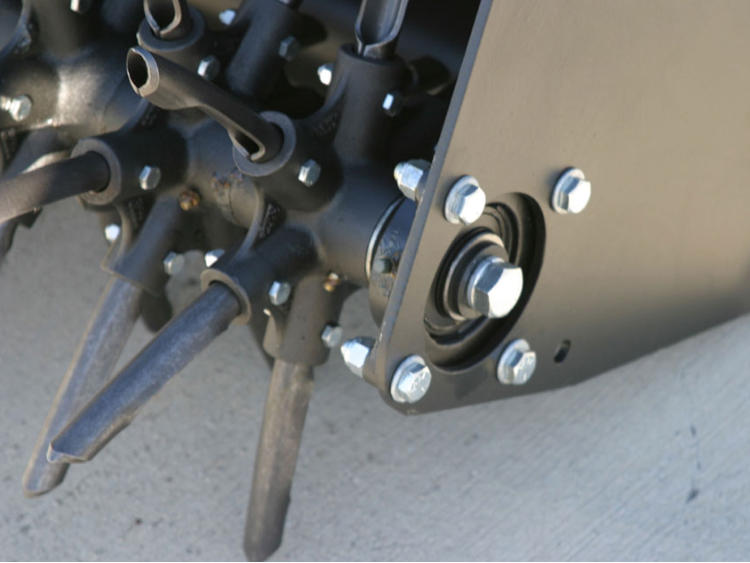

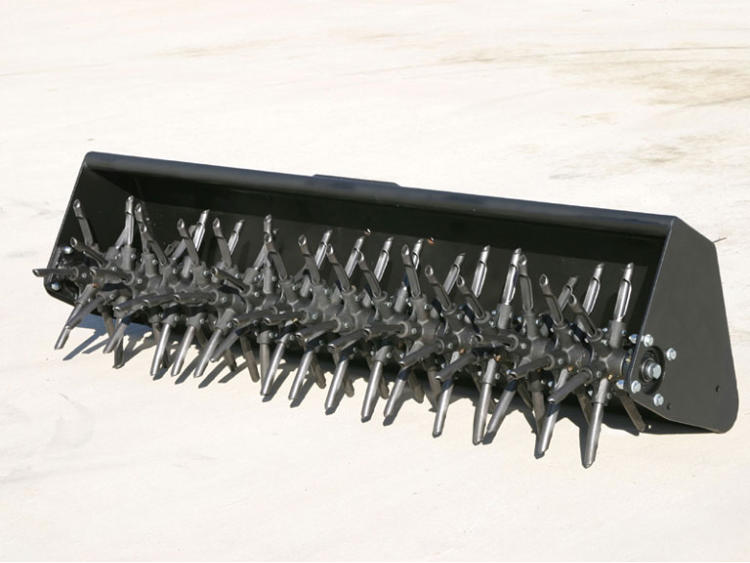

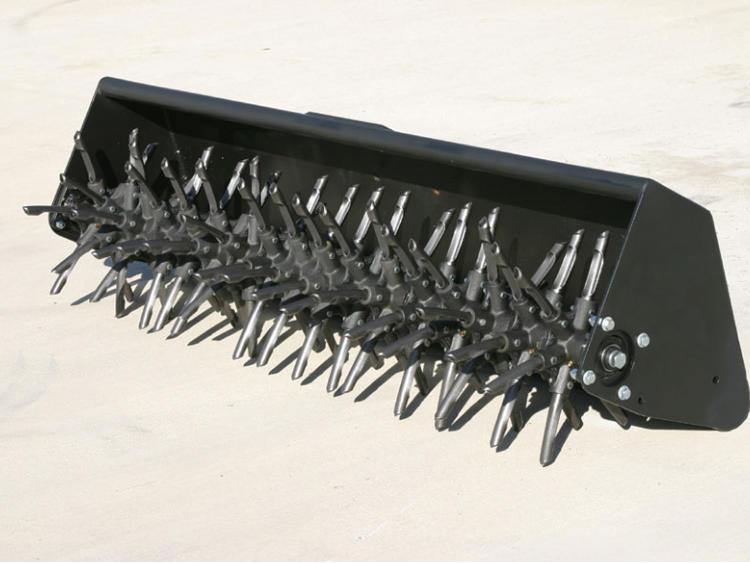

Plugger

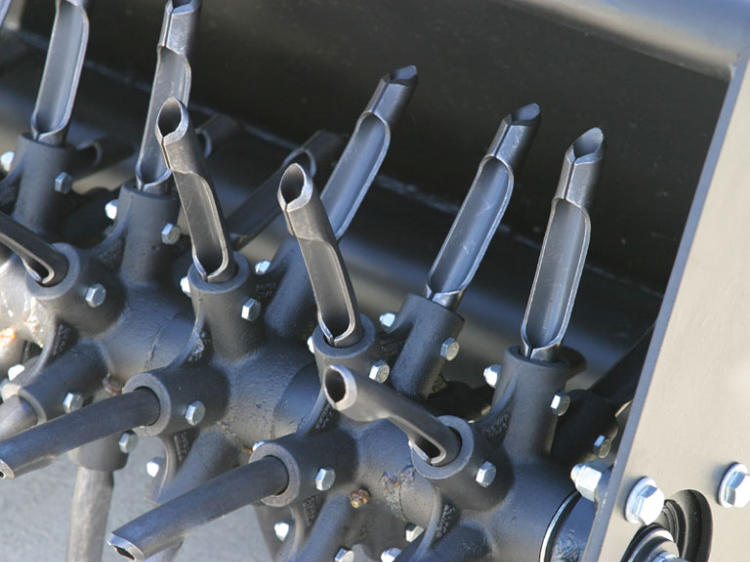

• Available in 3 sizes: 48” 60” 72” • Standard hardened spoons • Heavy bearings • 18 spoons per foot rolling independently

48” Plugger Specifications

60” Plugger Specifications

• 7” x 7” Bolt mount for Quick Attach • Part #: 3310

• 8” x 8” Bolt mount for Quick Attach • Part #: 3311

72” Plugger Specifications

• 8” x 8” Bolt mount for Quick Attach • Part #: 3339

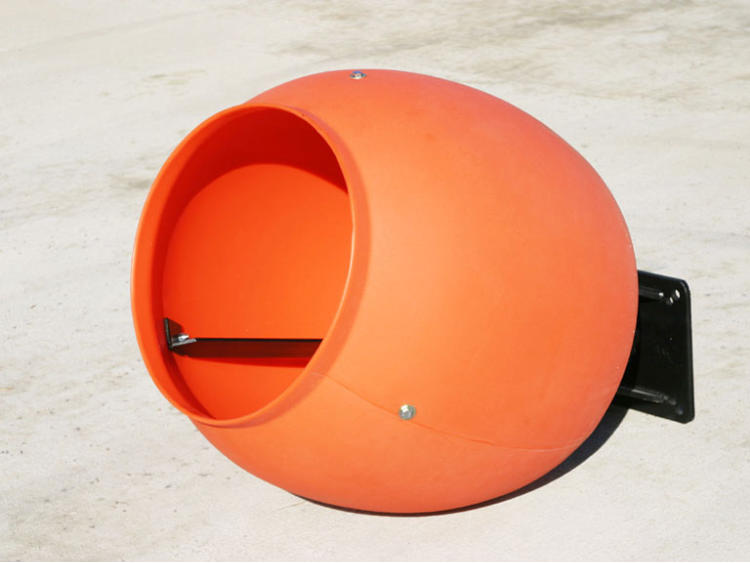

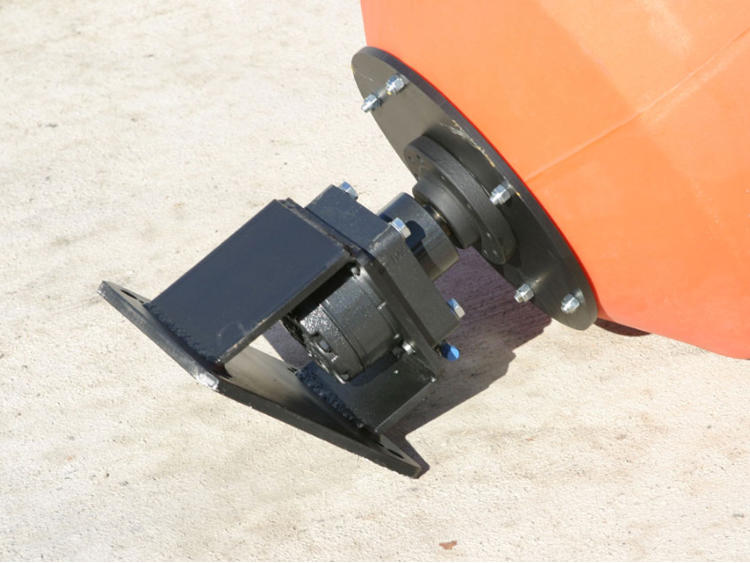

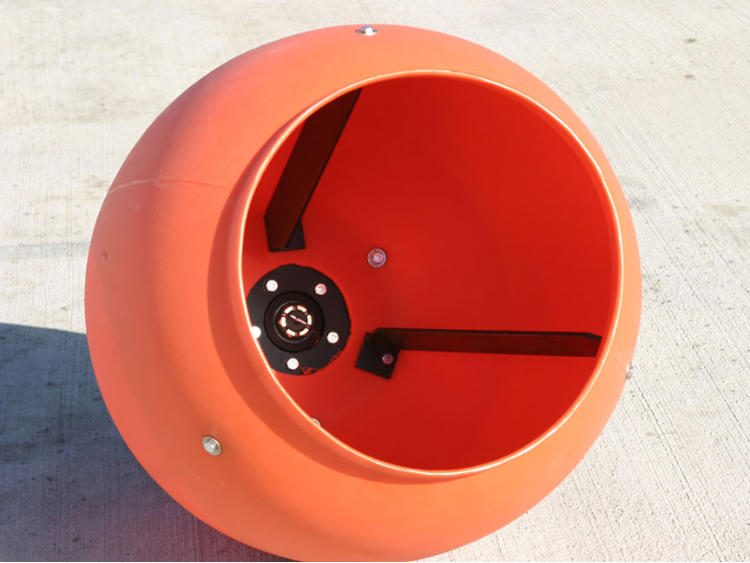

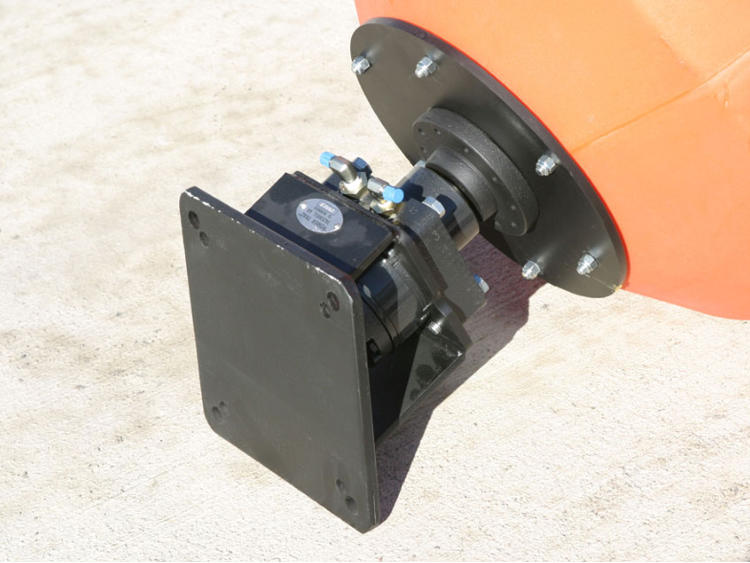

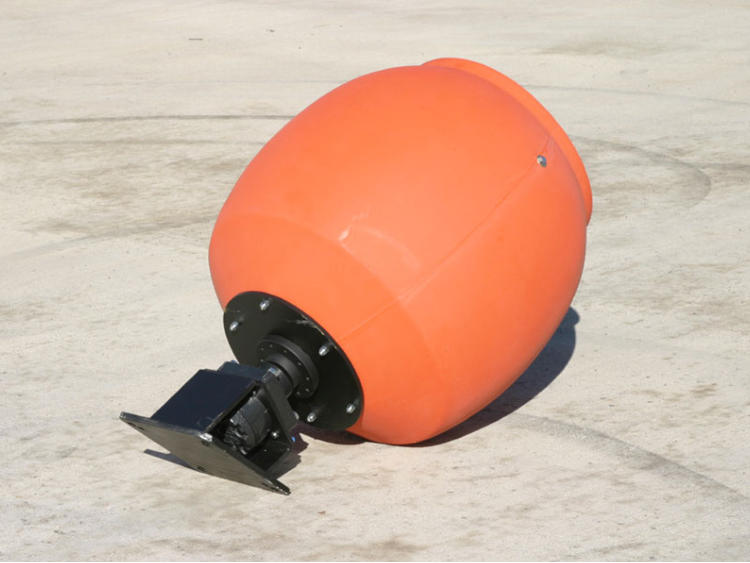

Cement Mixer

• Available in 2 sizes: 4 cubic ft. & 6 cubic ft. • Direct Drive • Durable Material: easy to clean

4 cu ft. Mixer Specifications

• 7” x 7” Bolt mount for Quick Attach • 4 cubic foot hopper • Part #: 3224

6 cu ft. Mixer Specifications

• 8” x 8” Bolt mount for Quick Attach • 6 cubic foot hopper • Part #: 3210

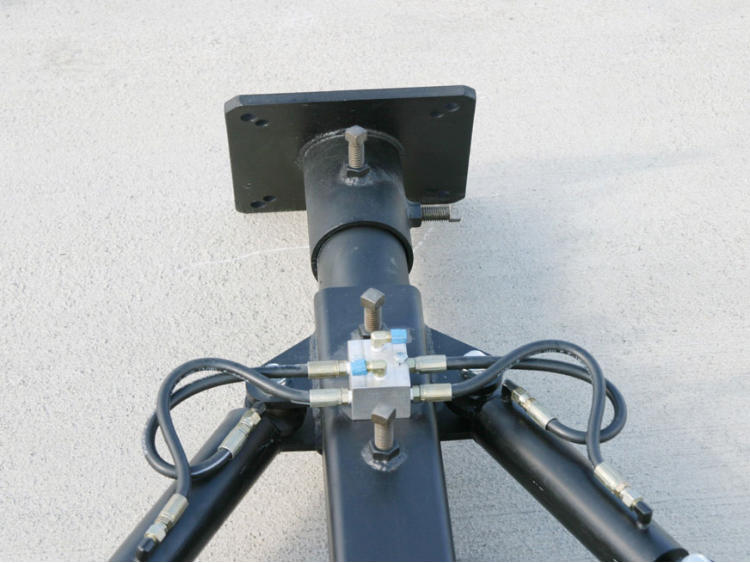

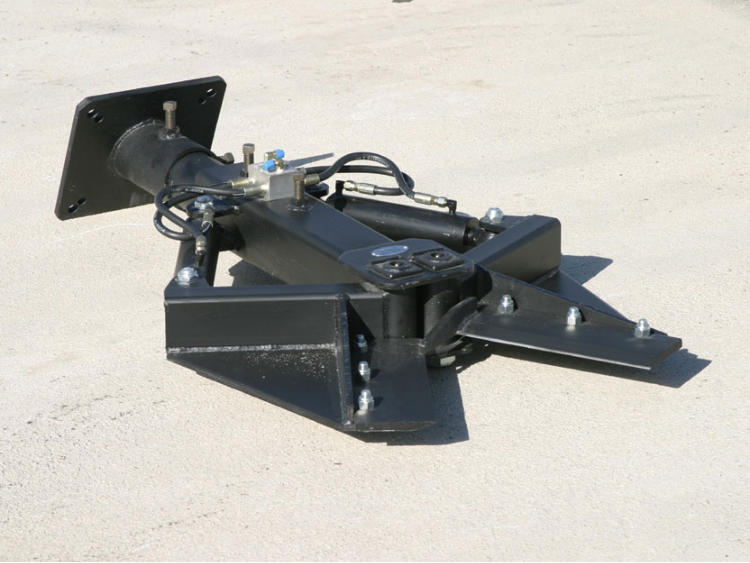

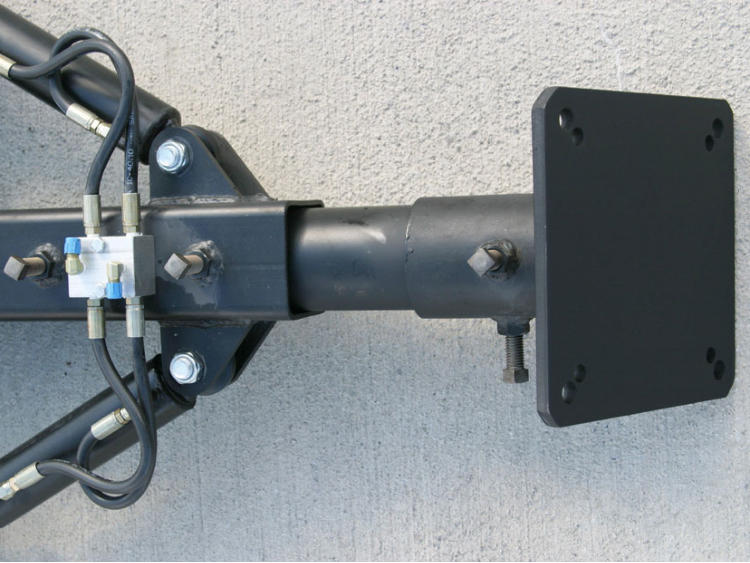

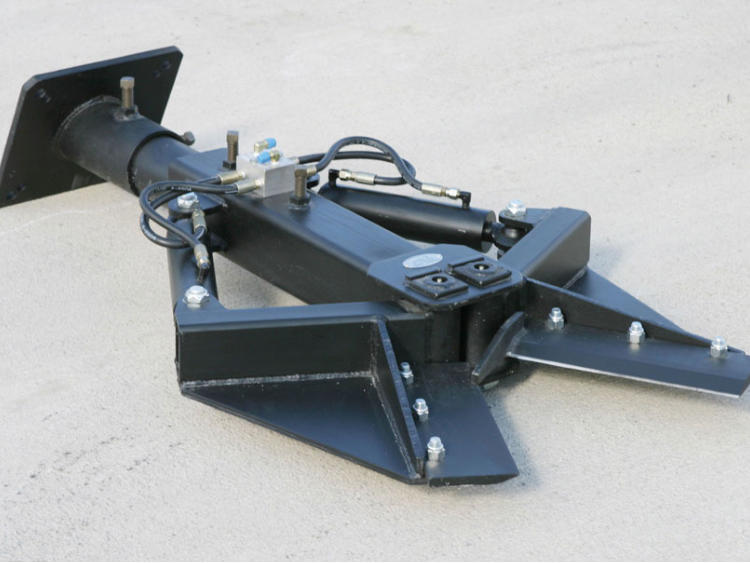

Tree Shear

• Available in 2 sizes • Adjustable Arm • Extend length by using a piece of 3” SCH 40 pipe of any length desired

5 Ton Tree Shear Specifications

10 Ton Tree Shear Specifications

• 7” x 7” Bolt mount for Quick Attach • 2,000 to 3,000 PSI • Cuts up to 5” to 6” softwood • Cuts up to 2” to 3” hardwood • Dual cylinders • Replacement blades • Part #: Q3406

• 7” x 7” Bolt mount for Quick Attach • 2,500 to 3,000 PSI • Cuts up to 8” softwood • Cuts up to 4” to 5” hardwood • Dual cylinders • Replacement blades • Part #: Q3416

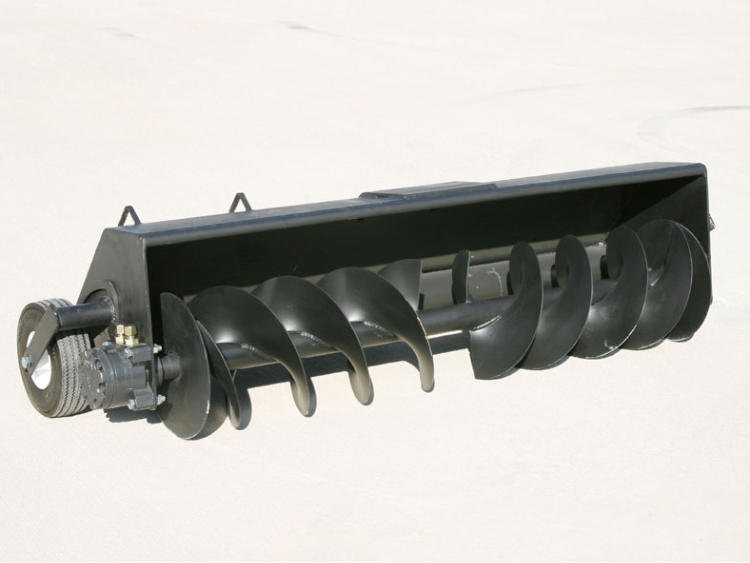

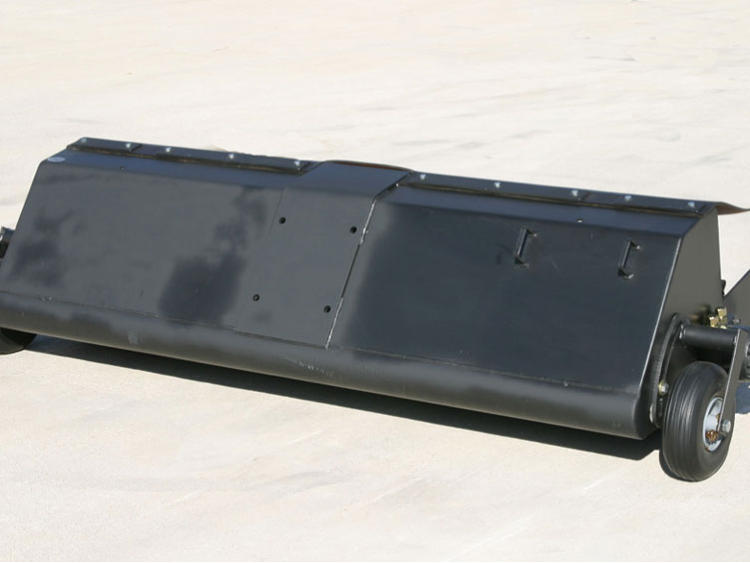

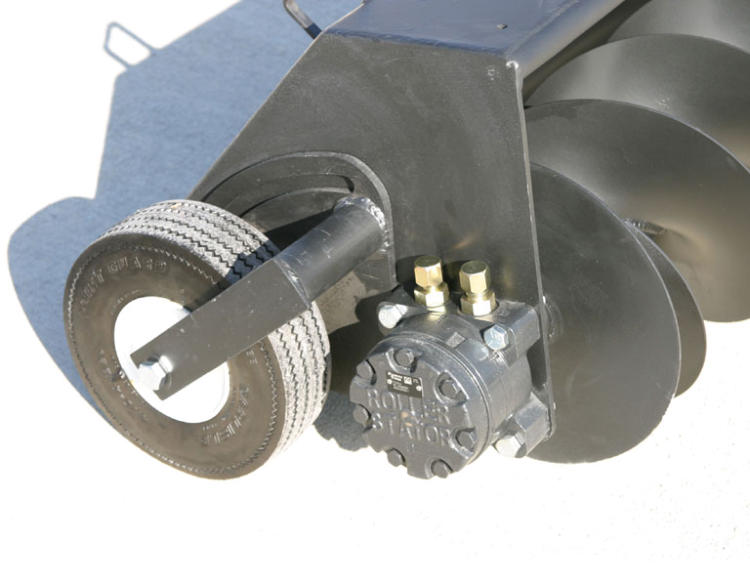

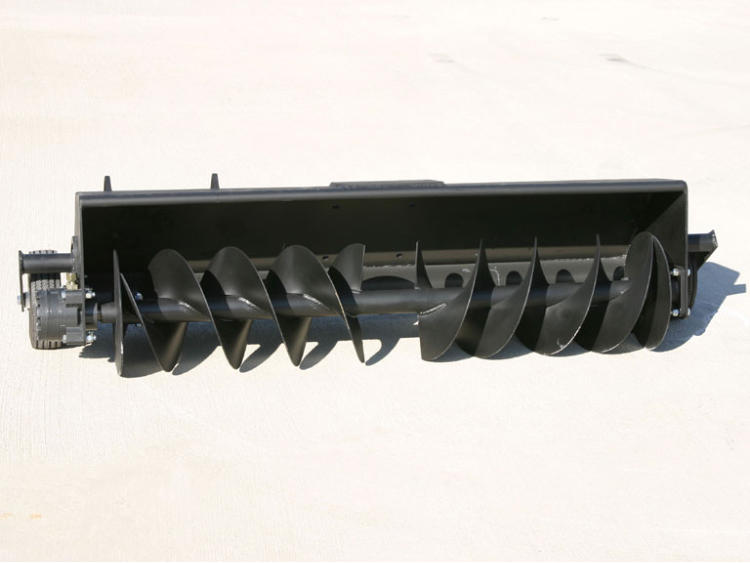

Ditch Filler

• Available in 2 sizes: 48” 60” • Adjustable Casters • Wheels prevents augers from digging into surface • Augers dirt from both sides

48” Ditch Filler Specifications

60” Ditch Filler Specifications

• 7” x 7” Bolt mount for Quick Attach • 6 to 12 GPM required • 1,000 to 2,500 PSI • Part #: Q3312

• 8” x 8” Bolt mount for Quick Attach • 10 to 18 GPM required • 1,000 to 2,500 PSI • Part #: Q3313

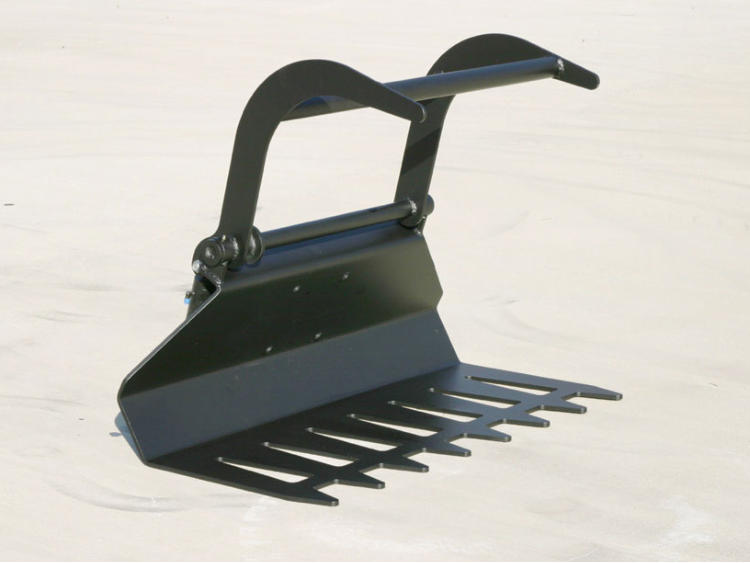

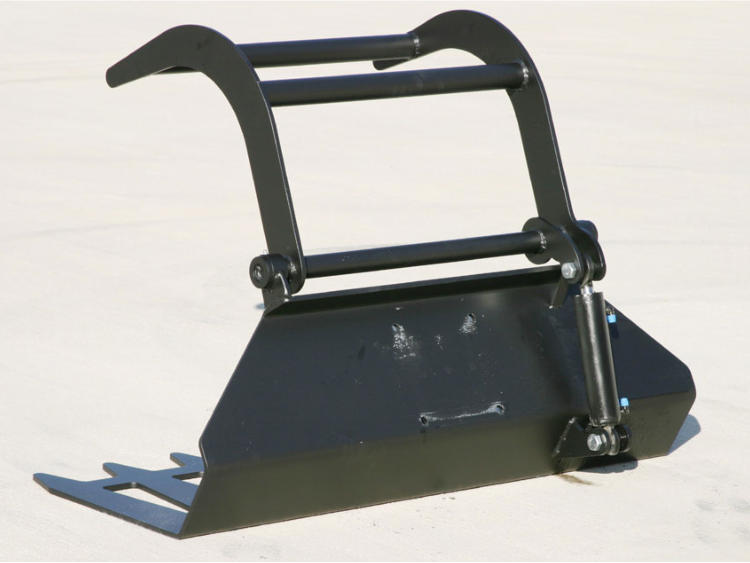

Utility Grapple

Available in 4 sizes

• 29” Utility Grapple: 800 lb. cap, 7x7 Bolt, Part #: Q3424 • 29” Utility Grapple: 1,200 lb. cap, 8x8 Bolt, Part #: Q3425 • 31” Utility Grapple: 1,800 lb. cap, 8x8 Bolt, Part #: Q3433 • 31” Utility Grapple: 2,400 lb. cap, 8x8 Bolt, Part #: Q3434
